NX-1000

Name: NX-1000
SKU: 18066895228667135348430520

Product enquiry
NX-1000

NX-1000 Product Introduction

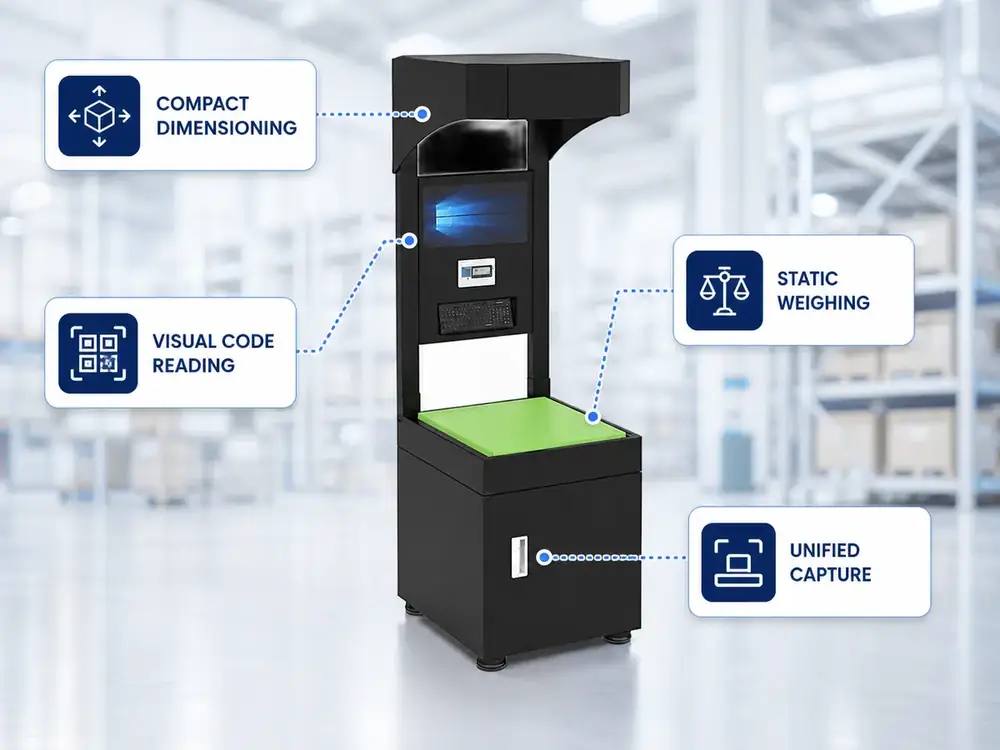

Using static scales, combined with infrared detection depth, three-dimensional vision technology and proprietary algorithms, including volume measurement, visual code reading, weighing and other modules, the measurement accuracy reaches ±5mm, which can reduce operating costs by 80%.

Industry Pain Points

Why is cargo logistics so slow? Among them, the picking, scanning, measuring, weighing, and recording processes take too much time, which seriously affects the delivery speed!

Solutions

Information superposition order number overlay
visual traceability order query parcel query video traceability

Perfectly solving all problems by one
action in one second

Time And Cost Calculation

How long do you need to Dispose 10000pcs packages? ➡︎ Before:10000*3s=500mins=8.3h Now:10000*1s=166mins=2.7h

Reduce
5.6h/day

Labor cost
US$15/h

You'll save
US$84/day

10 workstations
distribution center

Youll save
US$840/day

Youll totally save US$302400/year

Reduce
5.6h/day

Labor cost
US$15/h

You'll save
US$84/day

10 workstations
distribution center

Youll save
US$840/day

Youll totally save US$302400/year

Product Parameters

Measuring technology: 3D binocular vision technology

Measuring range: 20*20*10~600*600*600mm

Dimensional accuracy requirement: ± 5mm

Measuring time: <1S

Automatic scanning: intelligent/industrial camera code reading

Can read: one or two-dimensional code

Barcode accuracy: >10mil (0.25mm)

Upper computer: split or integrated (standard or optional)

Electronic scale: desktop scale or customized according to user needs

Electronic scale accuracy: t50g 1/3000

Printer: optional module (optional expansion docking)

Manual scanning: optional module (wired or wireless scanner)

Peripheral accessories: workbench (optional components)

Data interface: customized development of docking program according to needs

Application industries: logistics and express delivery, cross-border e-commerce, chain supermarkets

Conlida IoT as the volume of China A leader in measurement, specializing in high-precision volume measurement technology, using infrared detection depth, 3D vision imaging technology and patented algorithms, measurement accuracy can reach ±5mm, and quickly and accurately Measure package volume, weight, bar code, image and other information, synchronize data to user systems, and archive photos of objects for traceability management. The application scenarios are flexible and convenient, which can greatly improve user productivity, save labor costs, and compensate for loss of revenue.
