CLD-8000 Product Introduction

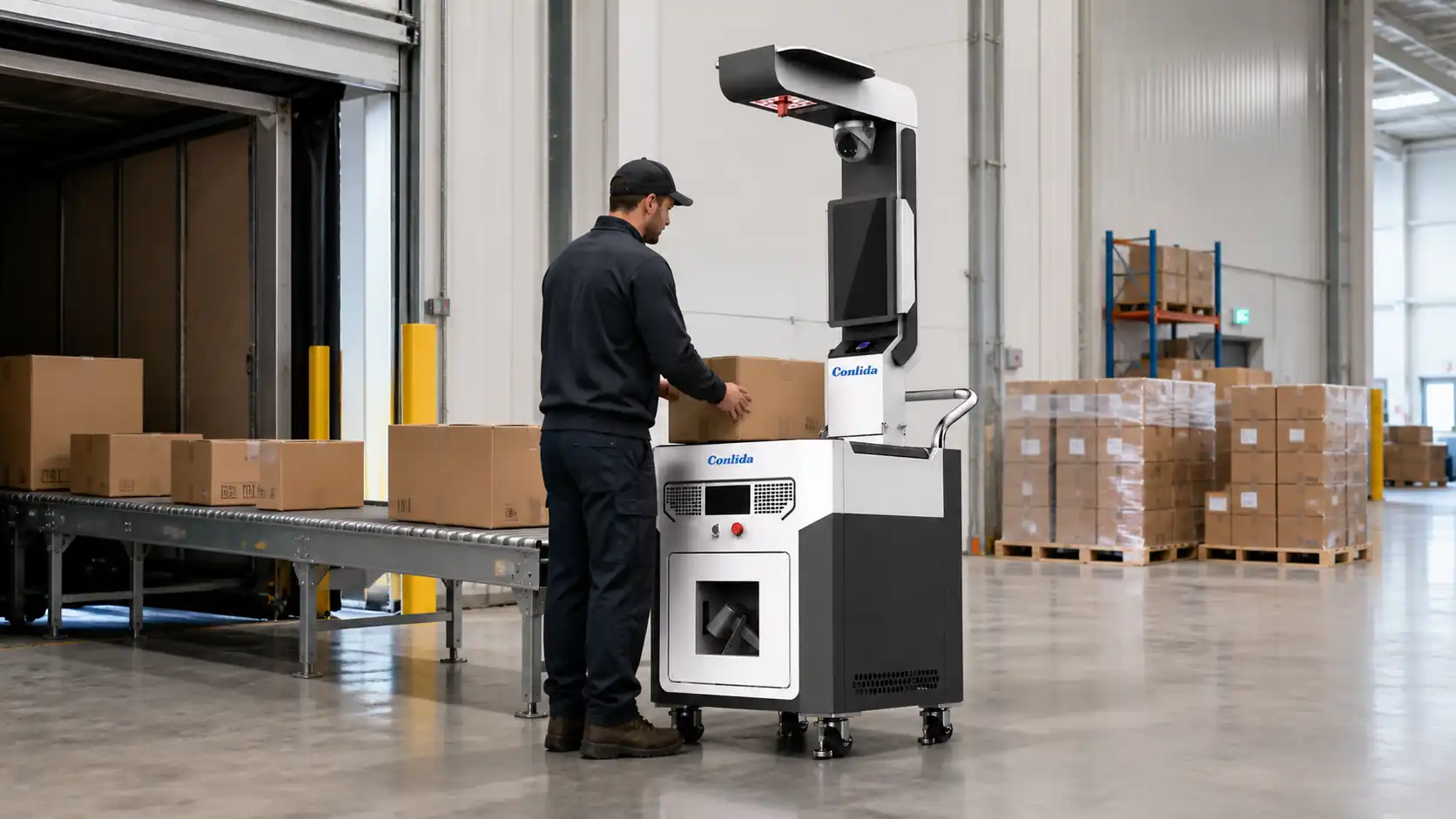

This is an upgraded version of the equipment that integrates Dimensioning, weighing, code reading, and video monitoring. It is a device specially designed to collect basic data for goods warehousing and review and collection of goods warehousing. It can simultaneously collect data such as measuring, weighing, code reading, and video traceability for different sizes and packaging types of goods.

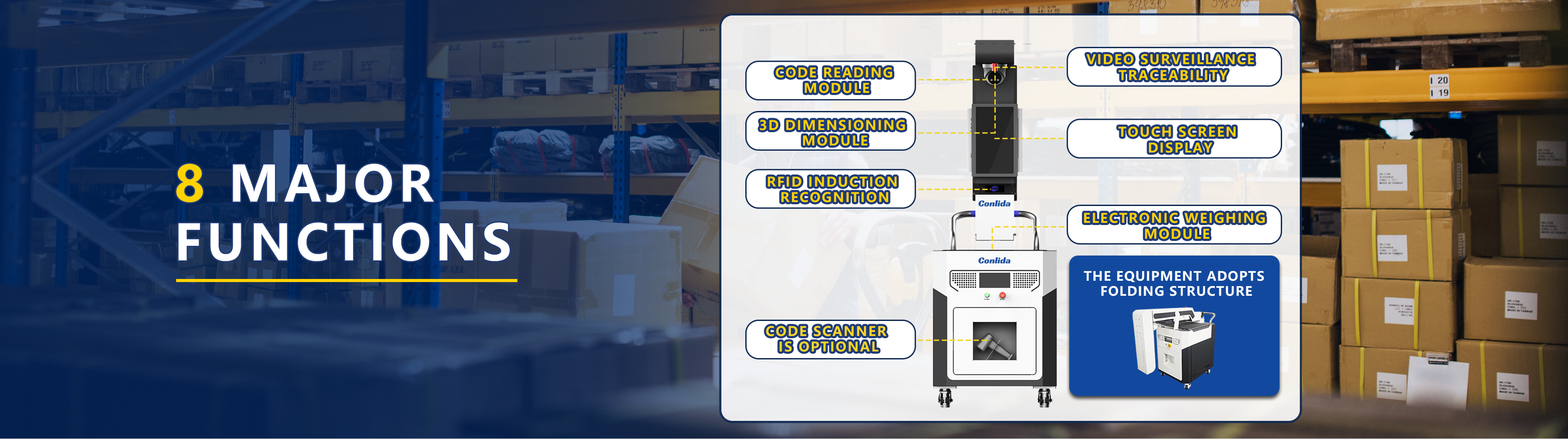

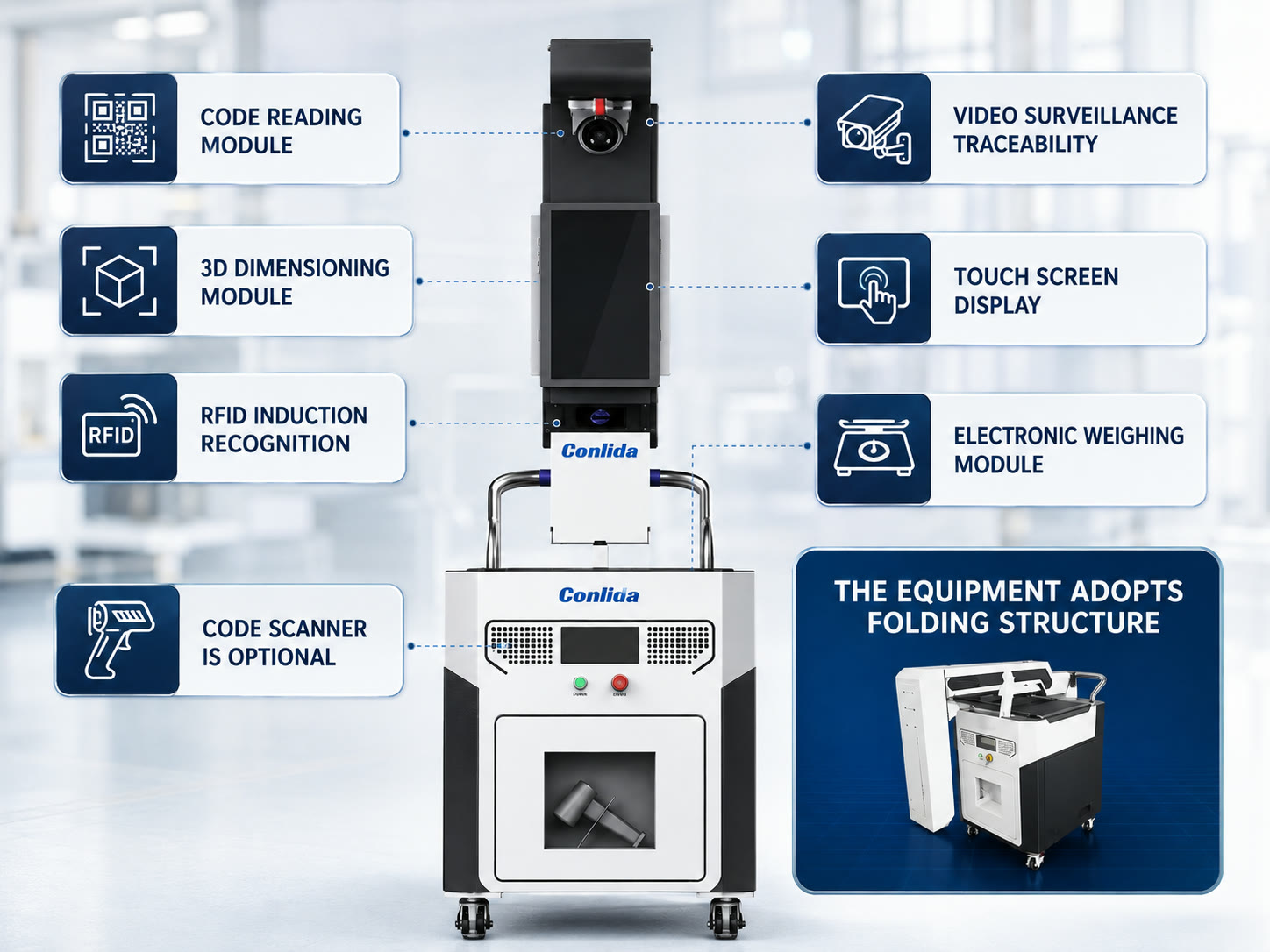

The equipment is composed of industrial visual code reading + industrial volume module + weighing module. It is equipped with touch-screen integrated intelligent software to achieve fast recognition speed and high accuracy. It also comes with a video traceability function, which can simultaneously collect volume, weight, bar code, video traceability and other information in 1 second, and the data accuracy is as high as 99.9%, achieving efficient sorting with multiple effects in one.
Its measurement accuracy is as high as ±3mm and weighing accuracy is as high as ± 5 g. It can upload data to customer systems simultaneously in real time. The device adopts a folding structure and is the world's first foldable volume measurement device, which saves space and is easy to move and transport.

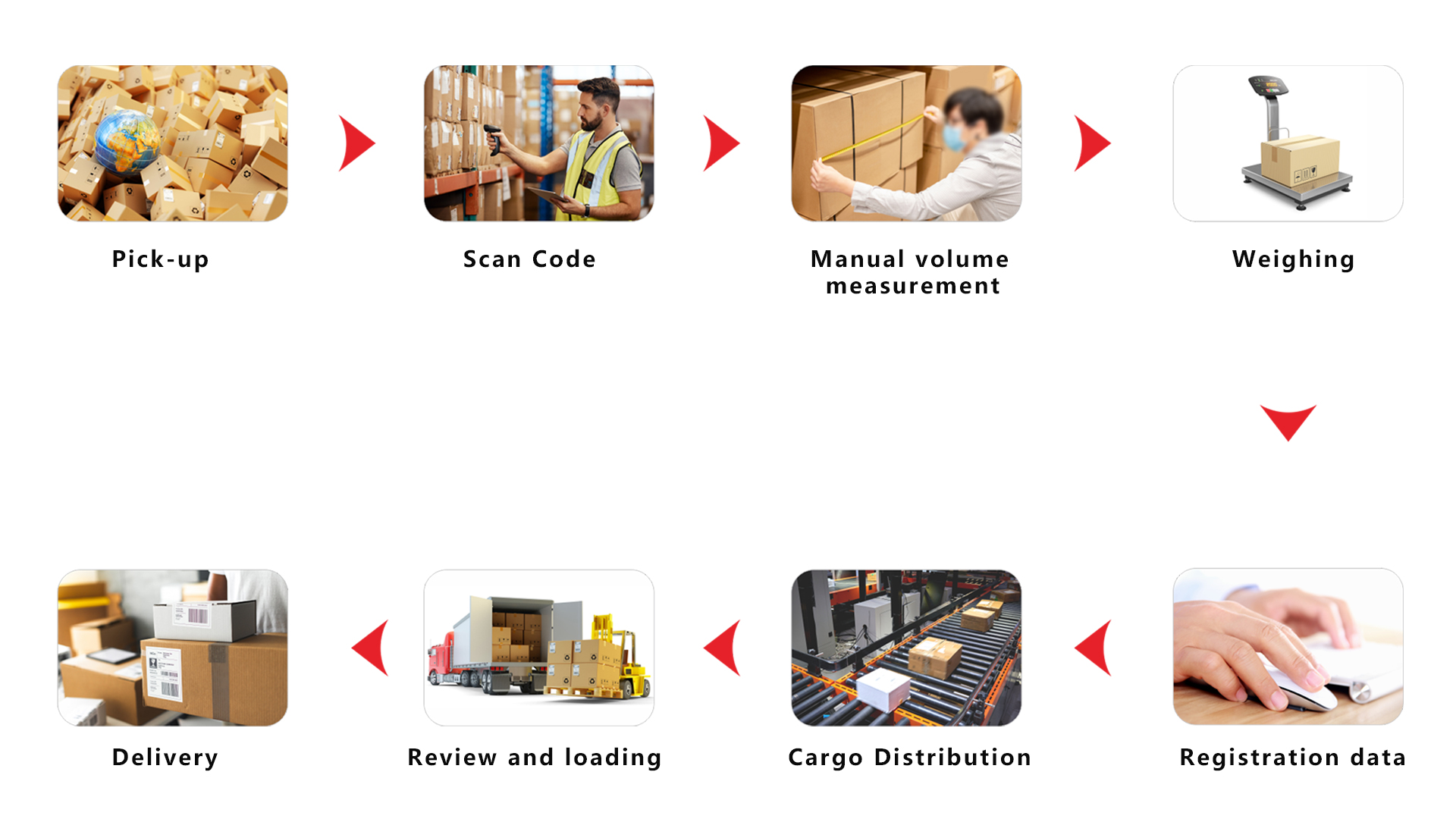

Time And Cost Calculation
Product Parameters
| Network conditions: full warehouse AP coverage and 5G network |
| Voltage (V): 230V |
| Measurement technology: 3D binocular vision technology |
| Measurement range: 20*20*10~600*600*600mm |
| Dimensional accuracy requirement: ± 3mm |
| Cargo weight range (kg): 0~100kg |
| Weighing accuracy requirement: accuracy ±5g |
| Measurement time: <1S |
| Automatic scanning: intelligent/industrial camera code reading |
| Readable: 1D/2D |
| Barcode accuracy: >10mil (0.25mm) |
| Upper computer: all-in-one machine (standard or optional) |
| Electronic scale: desktop scale or customized according to user needs |
| Information overlay, order number overlay, visual traceability |
| Order query, package query, video traceability |
| Manual scanning: optional module (wired or wireless scanner) |
| Peripheral accessories: workbench (optional components) |
| Data interface: customized development of docking program according to needs |

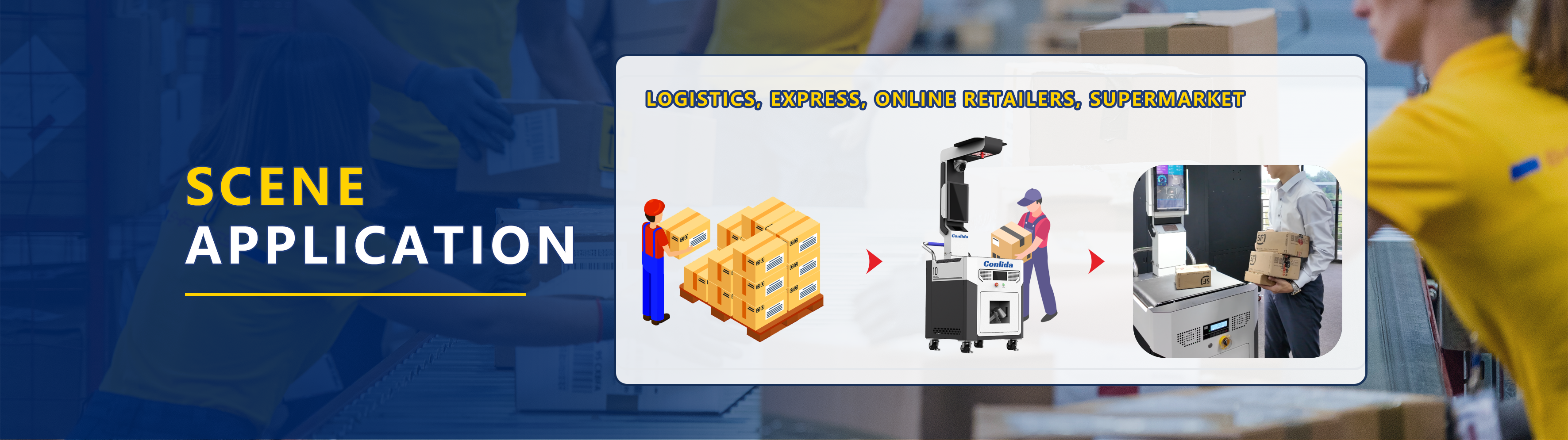

| Application industries: Logistics, Express, Online retailers, Supermarket |
