CLD-9000

Name: CLD-9000
SKU: 18071039896546139246300520
Availability: InStock

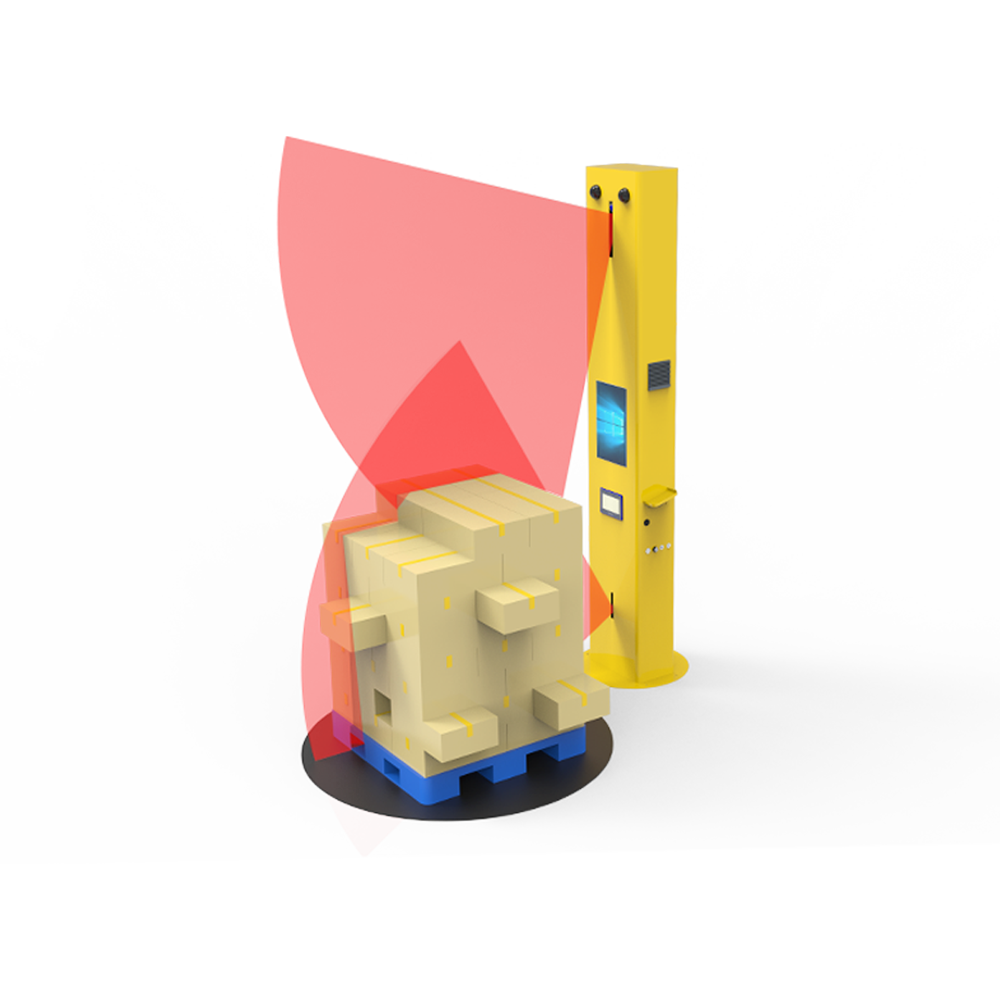

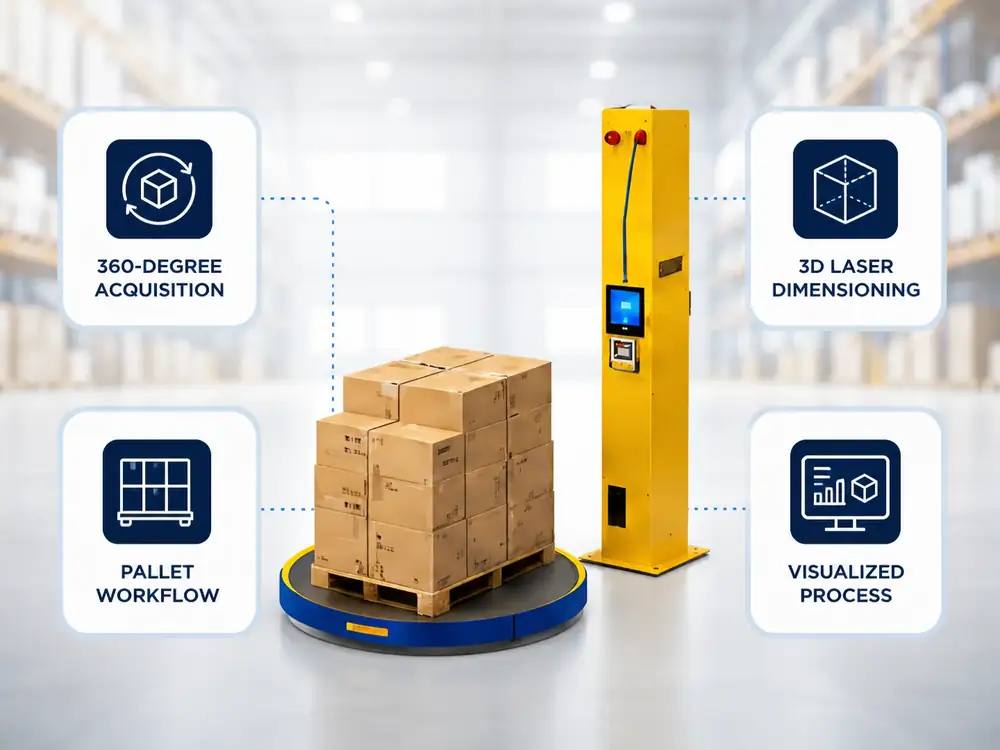

CLD-9000 3D Laser Pallet DWS Machine

The first 3D Laser DWS Machine in China equipped with a rotating pallet algorithm, designed for precise volume measurement of single or full-pallet parcels in logistics, warehousing, and e-commerce delivery operations.

Industry Pain Points

Why is cargo logistics so slow? Among them, the picking, scanning, measuring, weighing, and recording processes take too much time, which seriously affects the delivery speed!

Solutions

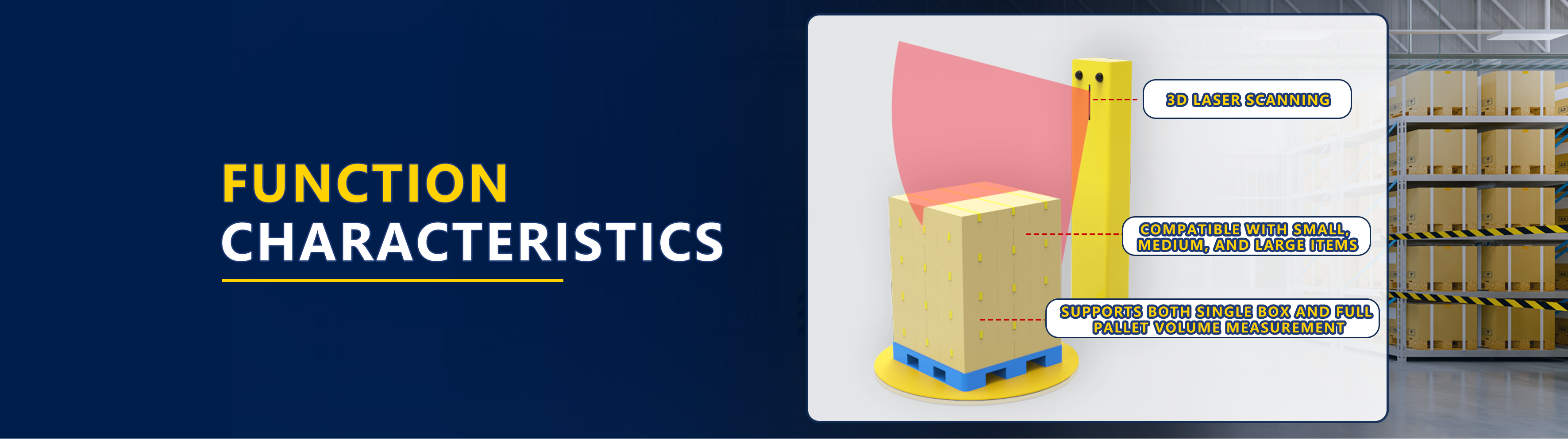

Utilizes high-precision 3D Laser scanning
technology combined with a rotational coordinate
algorithm to measure parcel dimensions.

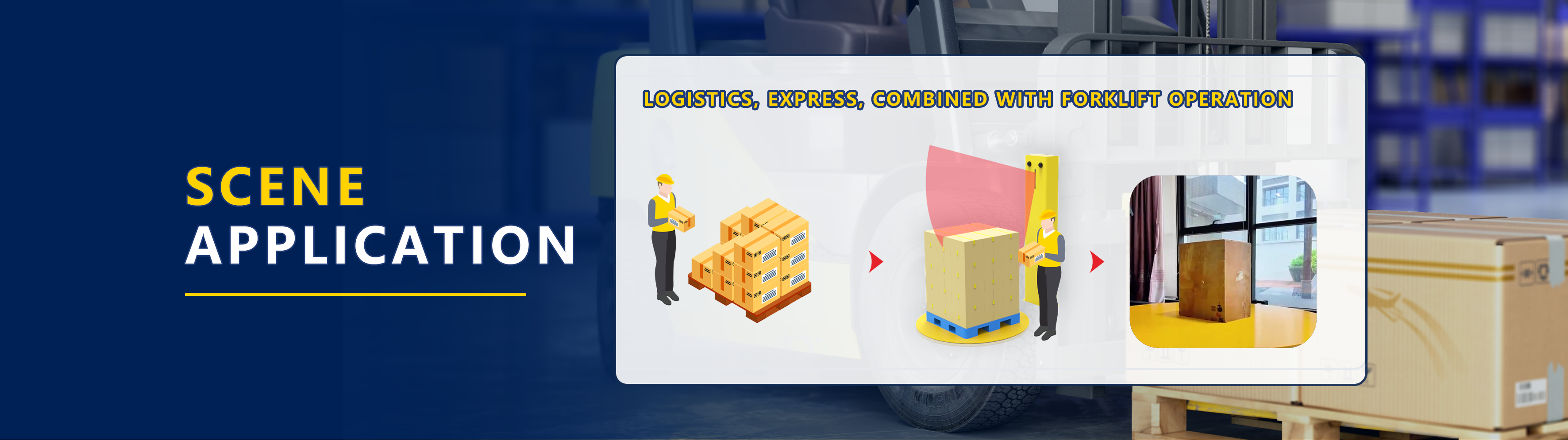

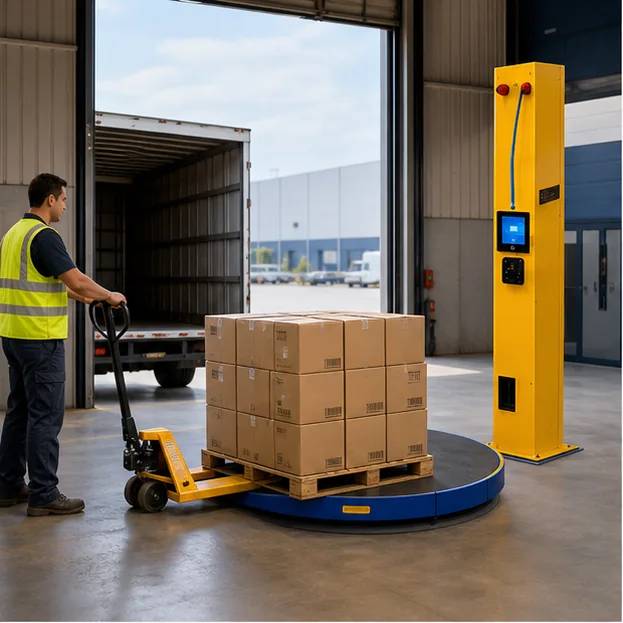

Application Scenarios

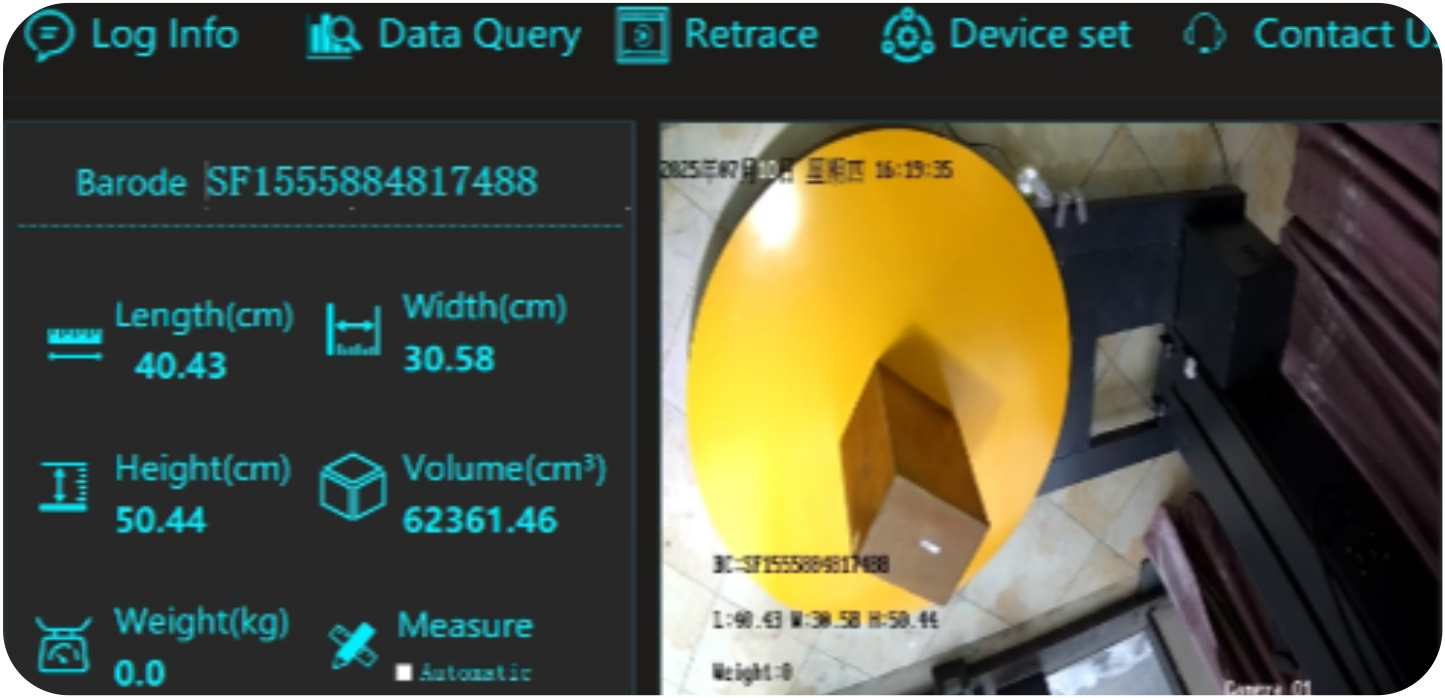

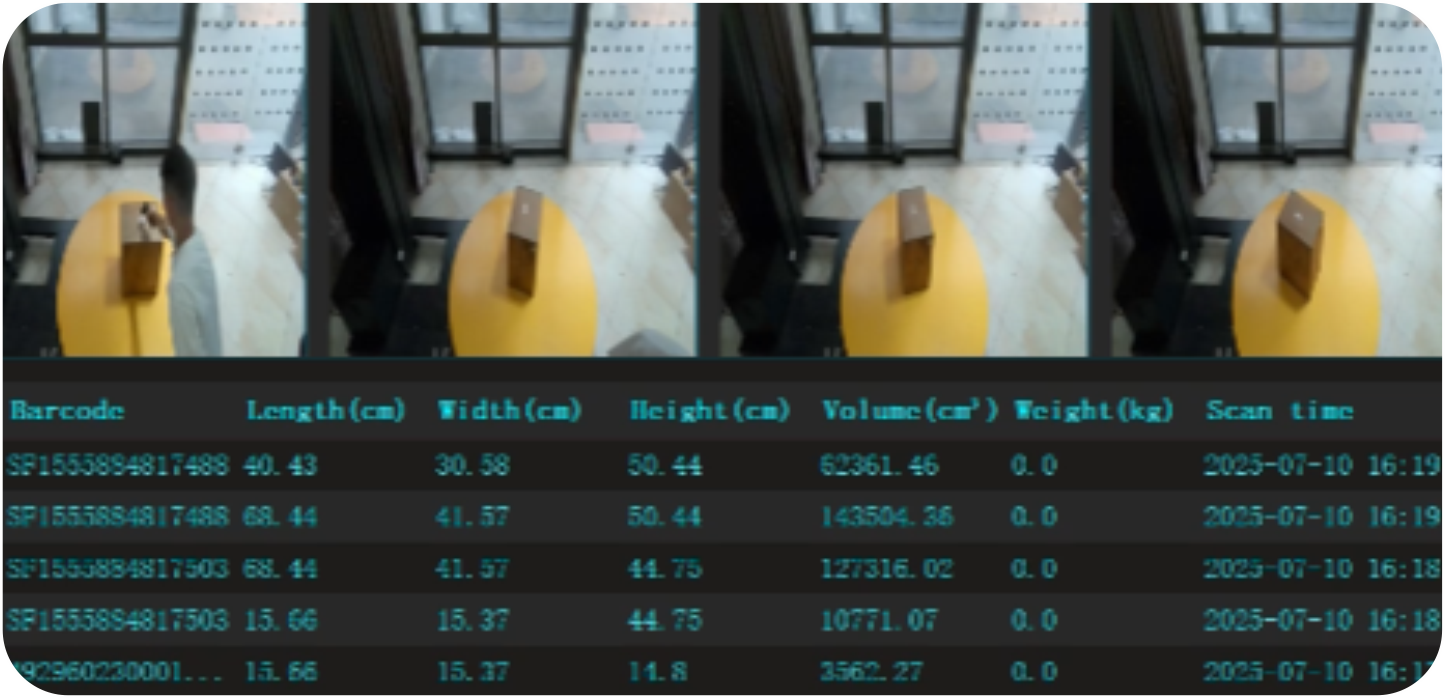

Fully visualized
measurement process

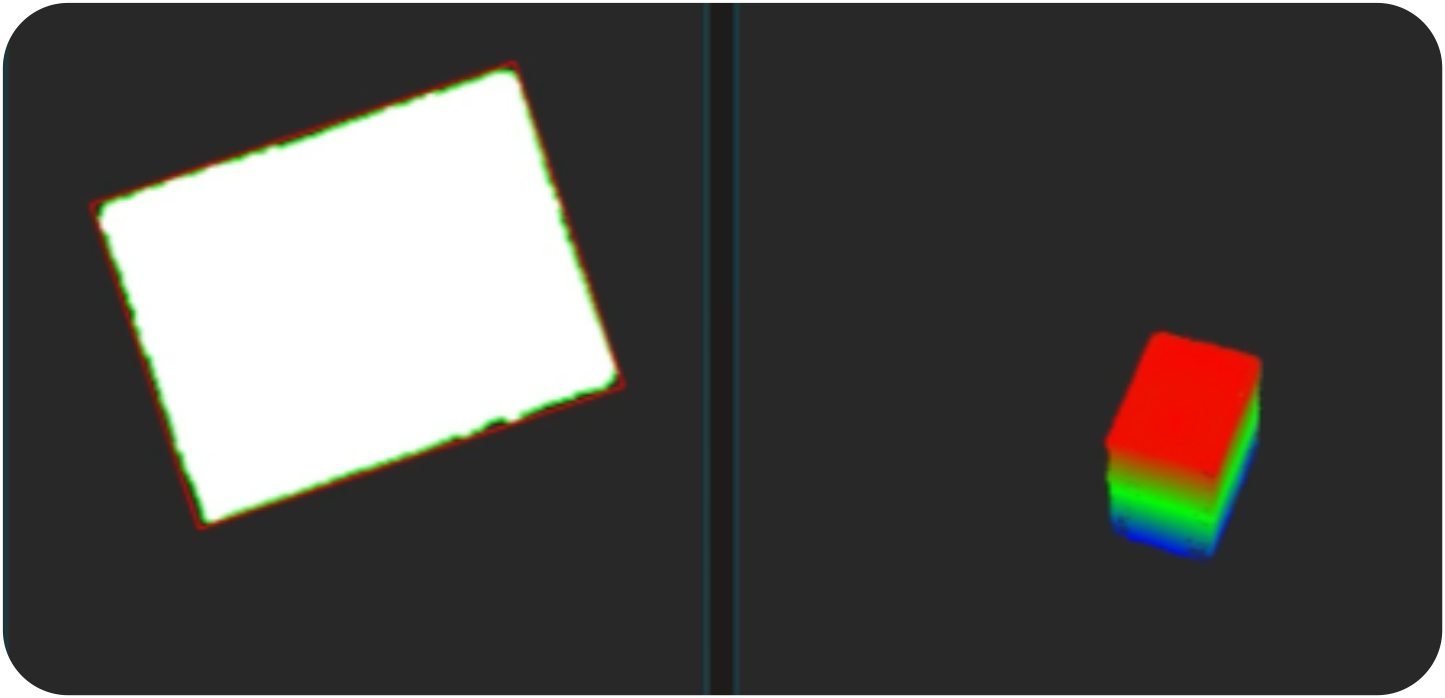

2D Layout Diagrams,
and 3D Point Cloud Visualization

Provides images from front,、 back, left, and right angles.

Product Parameters

Performance parameters / physical parameters

Overall Dimensions (mm): 480 × 280 × 2350

Platform Height from Ground (mm): 200

Barcode Resolution: 13.3 mil (Standard Version)

Weighing Accuracy: ±100 g

Volume Measurement Accuracy: ±15mm

Software Processing Time: Approx. 8 seconds

Device Communication: Ethernet / Wi-Fi

Operating Temperature: 0°C to 45°C

Traceability: 4MP Video Traceability (Standard)

Certification: CE Certified

Exported Data Format: CSV File

Video Monitoring: Included by default

Rotary Table Diameter Options (mm): 1200 / 1650 / 2000

Barcode Scanning Method: Manual Handheld Scanner

Weighing Range: 100–1000 kg

Volume Measurement Technology: 3D Hybrid Fixed LiDAR

Volume Measurement Range (mm): 150 × 150 × 150 ~ 1500 × 1500 × 1800

Power Supply: 110V–220V (Standard 220V)

Conlida IoT as the volume of China A leader in measurement, specializing in high-precision volume measurement technology, using infrared detection depth, 3D vision imaging technology and patented algorithms, measurement accuracy can reach ±5mm, and quickly and accurately Measure package volume, weight, bar code, image and other information, synchronize data to user systems, and archive photos of objects for traceability management. The application scenarios are flexible and convenient, which can greatly improve user productivity, save labor costs, and compensate for loss of revenue.
