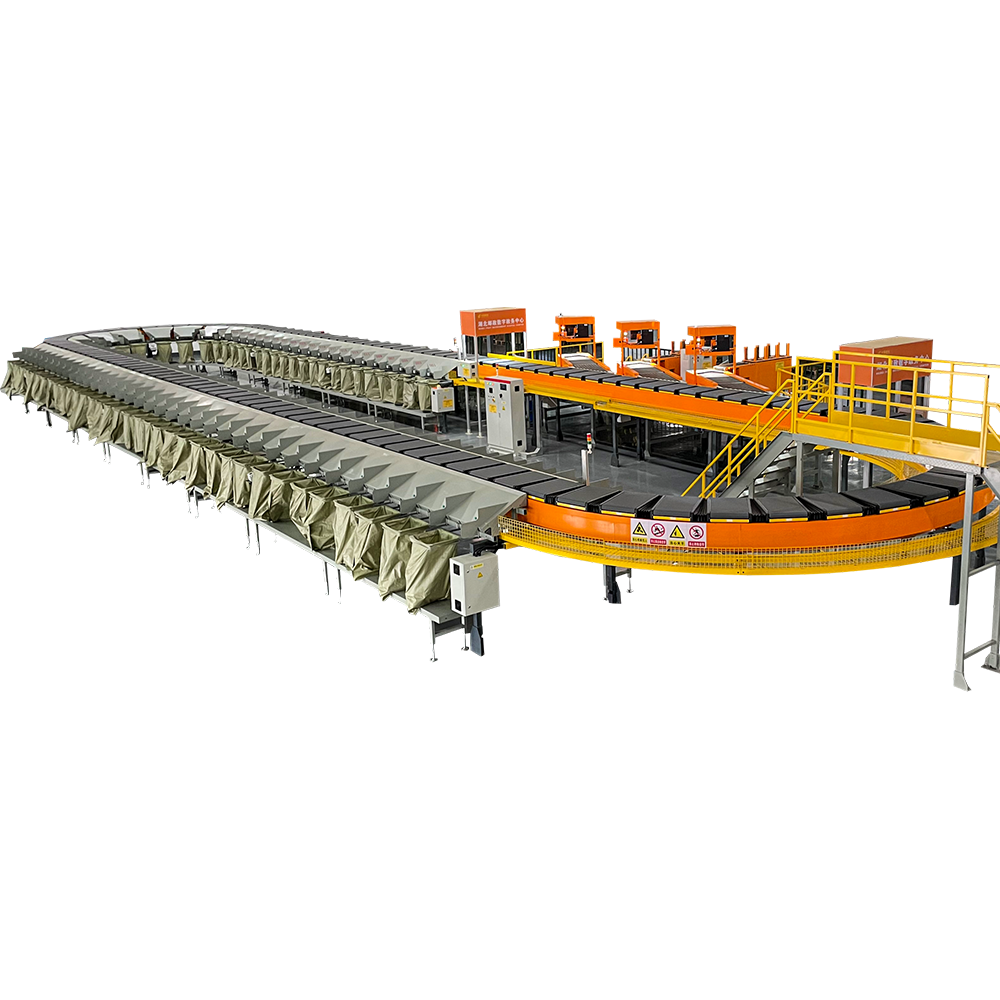

Circular Cross-belt Sorting Equipment Product Introduction
The e-commerce logistics industry is booming, and the demand for logistics business volume is increasing. In order to better meet customer needs and ensure the high-speed and high-quality development of the express logistics industry. This intelligent circular cross-belt sorting system is connected by a main drive linear motor and a sorting trolley. When the trolley moves to the specified sorting position, the belt is rotated to sort the goods to the designated grid. The sorting efficiency is as high as 10000 pieces/hour and the accuracy is as high as 99.9%. It has fast sorting speed, high efficiency, and a wide application environment. The size and layout of the equipment can be customized according to customer site needs.
Product Parameters
| System drive: Bilateral AC linear motor. | Sorting efficiency: 6000-8000 pieces per hour. |
| Carrying pitch: 600mm. | Sortable product size: Maximum package 700x700x700mm. |
| Pallet length: 700mm. | Minimum package 10 × 20 × 10mm. |
| Pallet belt width: 420mm. | Can handle single product weight: 40G-40KG. |
| Maximum conveying speed: 1.2-2.4 m / s (Optional) | Product weighing accuracy: ±5g |
Intelligent Package Supply Desk Product Introduction
- Used for package supply and import of express sorting equipment or front end
- Suitable for circular cross-belt sorting machine and straight-line cross-belt sorting machine
- Logistics sorting equipment with accurate weighing and fast scanning
- Compared with manual delivery, the operation is more convenient
| Conveying speed: 1.2-3m/s. | Weighing range: 40g-30kg. |
| Weighing platform size: 400 × 500mm. | Handling capacity: up to 1800 to 2,200 parcels per hour. |
| Maximum package size: 500 × 500 × 500mm | Power max: power 3KW. |
| Minimum package size: 40 × 60 × 10mm | Operating temperature: -10-50 °C. |
| Weighing accuracy: ±10g | Power supply: 220V |
Application Industry
- Continuous and efficient sorting in large quantities
- Reduce the error rate in the sorting process
- Effectively reduce the cost of manpower expenditure
- Protect the safety of parcels, improve the sorting efficiency, and improve the efficiency of enterprise management.
